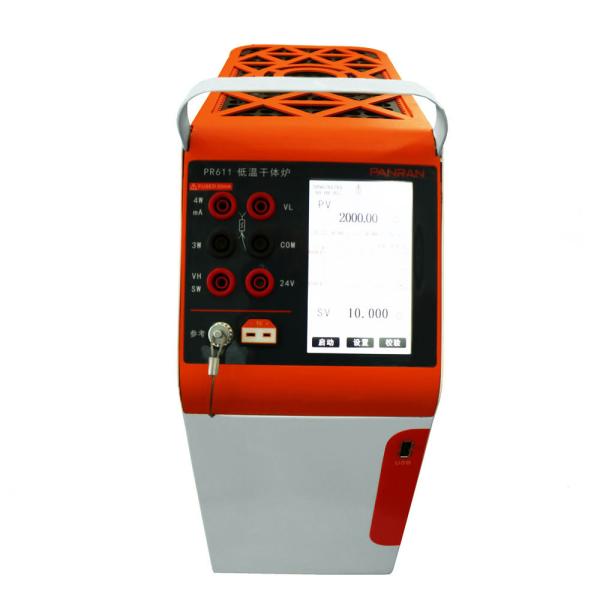

Thermocouple Calibration Furnace

Name: Thermocouple Calibration Furnace
Brand: Panran
Price: 5000 USD

Buy cheap Thermocouple Calibration Furnace product

Brand Name : Panran

Model Number : PR611A

Place of Origin : Shandong China

MOQ : 1 unit

Price : USD5000/unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 20 pcs per month

Delivery Time : 15-30 days

Packaging Details : Case

Temperature range : -30～150℃

Resolution : 0.001℃

Temperature control stability : ±0.01℃

Temperature block diameter : 26mm

Insert depth : 160mm

Power supply : 190～250VAC，47～63Hz

Dimension : 320mm×343mm×152mm

Rated power : 750W

Weight : 8.9kg

Contact Now

Dry block calibrator

Overview

PR6XX series dry block calibrator is a portable temperature source made of solid heat conduction and temperature uniformity of solid metal blocks. This equipment has advanced temperature control technology and multiple safety

The protective measures are characterized by small size, light weight, fast temperature rise and fall, etc., which are very suitable for industrial field and laboratory use.

Features

1. Advanced temperature control technology ensures the accuracy and uniformity of the temperature field.

2. Electronic heating and cooling technology makes the temperature field rise and fall quickly.

3. U disk storage function, greatly facilitates the post-processing analysis of data.

4. A variety of safety measures to ensure the reliability of the equipment.

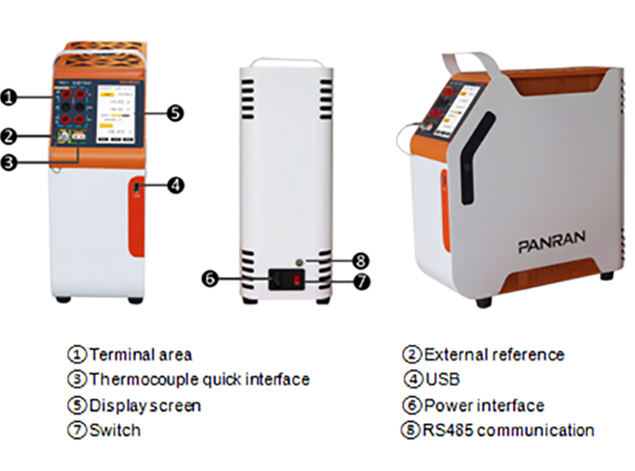

Basic structure

Model	PR611A	Remarks
Temperature range	-30～150℃	At 23℃
Resolution	0.001℃
Temperature control stability	±0.01℃(Built-in temperature controller) ±0.01℃(Reference temperature controller)	Full temperature range: within 10 min keep stable
Accuracy	±0.2℃(Built-in temperature controller) ±0.05℃(Reference temperature controller)
Radial uniformity	±0.01℃
Axial uniformity	±0.05℃	Full temperature range: Bottom 40mm
Temperature block diameter	26 mm
Insert depth	160mm
Heating time	24~100℃:5min 24~150℃:10min	Subject to the temperature at the bottom of the soaking block
Cooling time	24~0℃:4min 24~-30℃:20min
Display size
Working environment	Work temperature:-10℃～50℃ Storage temperature:-20℃～60℃ Relative humidity:≤90% RH, No condensation	The effective lower temperature limit is: room temperature minus 57℃
Power supply	190～250VAC,47～63Hz
Dimension	320mm×343mm×152mm(H×D×W)
Rated power	750W
Weight	8.9kg

The standard configuration

Name	Quantity
Body	1set
Temperature block	Each 1set
Temperature block fixture	2pcs
Test line	2red /2black With alligator clip
Computer communication line	1pc
Manual	1set
Tube	2pcs
Aluminum suitable carrying case	1pc
